Leak Test Machines

Home - LEAK TEST MACHINES

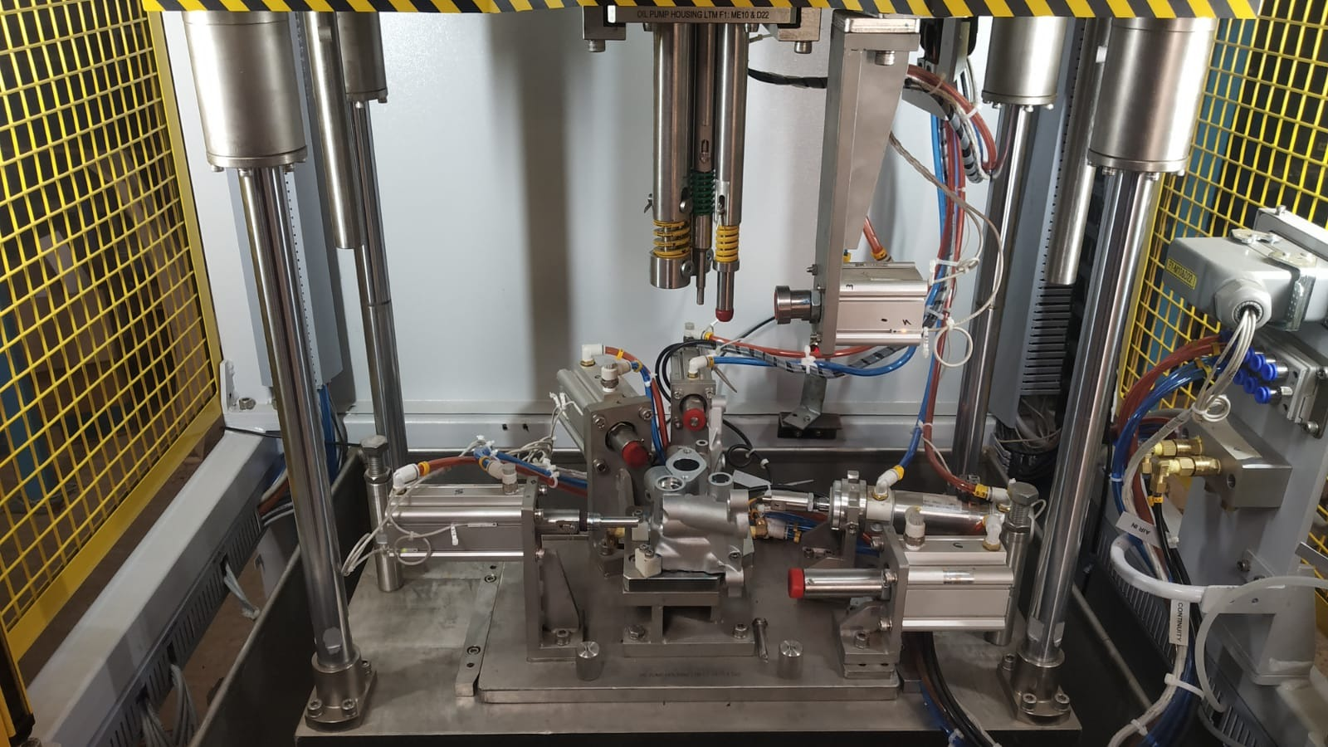

LTM FOR PISTON & PRESSURE VALVE

  • leak test using cosmo leak tester
  • leak test pressure: 2 bar and allowable leak rate 120pa
  • pneumatically operated fixtures to seal the component
  • manual loading & unloading of component
  • individual fixtures for piston and pressure valve component
  • component sealed at ball formed area and detected leak test
  • CLIENT: M/S PALOMA TURNING CO LTD. BANGALORE
product-img
product-img

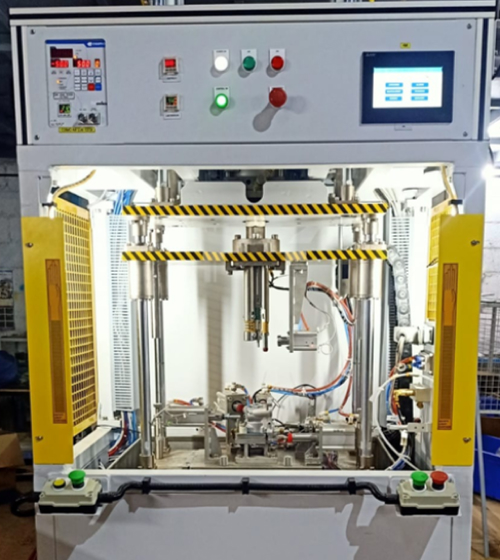

LTM FOR HU & VCU COMPONENTS – DRY (OLA ELECTRIC)

  • leak test using cosmo leak tester
  • leak test pressure: 3 bar and allowable leak rate 100pa
  • pneumatically operated fixtures to seal the component
  • individual pneumatically operated sealing fixtures
  • punch marking for ‘ok’ components
  • scanner integration with data storage plc logic
  • CLIENT: M/S COSMO INSTRUMENTS IND. LTD. BANGALORE

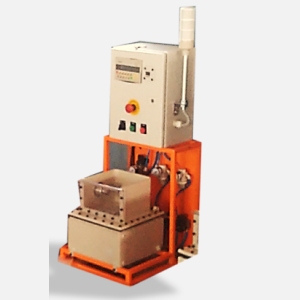

LTM FOR THERMOSTAT HOUSING– DIP TYPE

  • visual leak testing
  • leak test pressure: 5 bar
  • manual loading & unloading of component
  • individual pneumatically operated sealing fixtures
  • ss tank, ss locating pins, ss fixtures which comes in contact with water
  • lm guiding arrangement with special sealing design for corrosion free sliding
  • punch marking for ‘ok’ components – confirmation from operator
  • special silicon sealing profile as per comp.
  • CLIENT: M/S COSMO INSTRUMENTS IND. LTD. BANGALORE
product-img
product-img

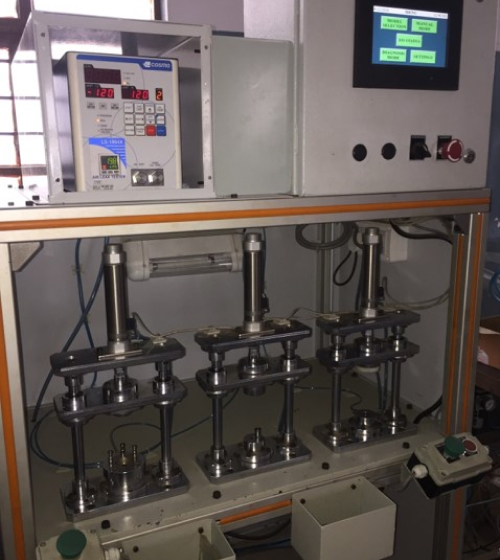

LTM FOR OIL PUMP– DRY & DIP TYPE

  • leak test using cosmo leak tester
  • leak test pressure: 5bar and allowable leak rate 120pa
  • manual loading & unloading of component
  • individual pneumatically operated sealing fixtures
  • ss tank, ss locating pins, ss fixtures which comes in contact with water
  • lm guiding arrangement with special sealing design for corrosion free
  • punch marking for ‘ok’ components – confirmation from operator
  • special silicon sealing profile as per comp.

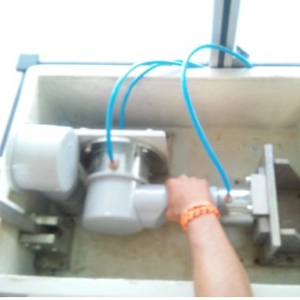

LTM FOR THERMOSTAT HOUSING– DIP TYPE

product-img

LEAK TEST MACHINES FOR THIN WALLED COMPONENTS

product-img product-img product-img product-img product-img

LTM FOR HYDRAULIC AND FUEL TANKS

  • visual type leak machine ( bubble type)
  • ms structured leak proof tank
  • manual loading of component
  • designed to accommodate 14 model components having max size of component 1050h x 980w x 900h
  • component will be loaded on the platform and clamped before loading in to machine
  • test pressure at 0.4 to 0.8 bar
  • power pack spec: 90 bar op , 10lpm flow and 3 hp motor. 2 nos of ø50 x 1200 stk
  • cylinders
  • CLIENT: M/S SURIN AUTOMOTIVE PVT LTD, BANGALORE
